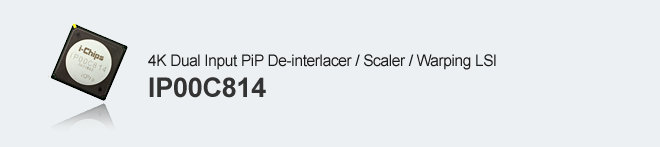

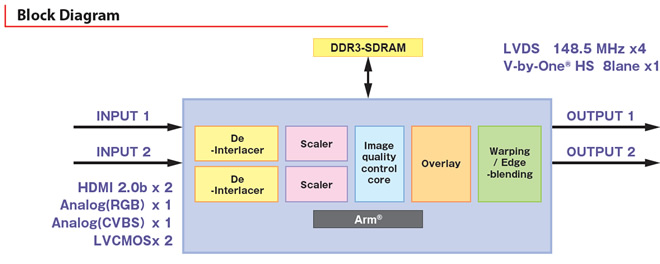

The IP00C814 is an enhanced multi-functional image processing LSI with integrated 2-channel scalers and de-interlace cores as well as a 1-channel warping engine.

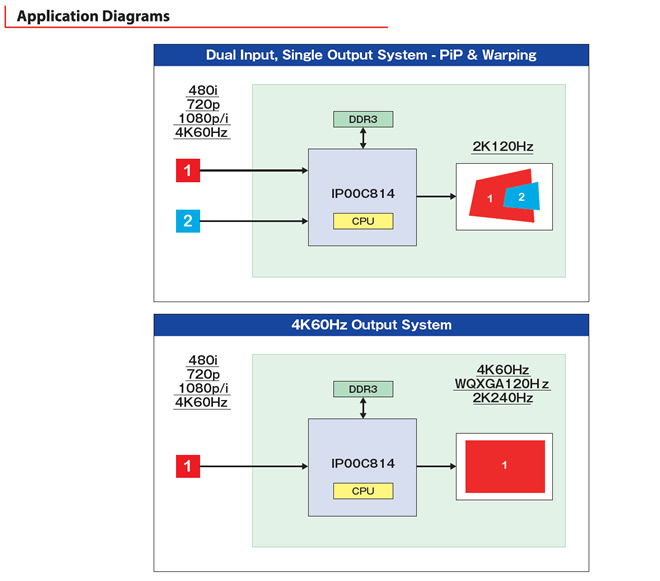

It can accept 4K dual input images with 2K PiP/PoP output images and single 4K input image with 4K output image.

This device has an embedded CPU, and peripherals such as JPEG codec, HDMI Rx, high-speed ADC, video decoder, and LVDS/V-by-One®HS Tx. In addition, high-performance functions such as HDR, 3DLUT for color management and edge-blending required for multi-screen system with multiple projectors are also integrated.

Input (2-port)

• RGB 30bit / YUV 4:4:4 30bit / YUV 4:2:2 20bit / YUV 4:2:2 10bit / YUV 4:2:0 30bit

• HDMI (2-port) / LV-CMOS (2-port) / Analog RGB / CVBS

Output（2-port）

• RGB 30bit / YUV4:4:4 30bit / YUV4:2:2 20bit / YUV4:2:2 10bit / YUV4:2:0 30bit


• Dual LVDS (2-port) / V-by-One®HS

Input & Output Image Size

• Horizontal sync signal 16,384 pixels

• Horizontal image active area 2,176 pixels

External DDR3-SDRAM

• Scaler frame memory : 32bit PC1600 (4G / 2G / 1G x 16) x 2

• ARM® main memory : 16bit PC1600 (4G / 2G / 1G x 16) x 1

External / Internal Sync

• Output sync signal is available only with internal sync signal

Input/Output Sync/Asynchronous Behavior

• Frame rate conversion with frame tear protection

• External force synchronization

• Genlock

HDMI Rx

• Compliant with HDMI 2.0b and HDCP2.3 (support DVI1.0)

• Embedded HDCP Key

• Audio interface supports L-PCM and Compressed audio data

High-speed ADC

• Maximum operating frequency 165Mhz

• Hsync/Vsync separate input supported

• Clock phase adjustment 32steps

• Sync on Green input supported

Video Decoder

• NTSC-M, JPN, 4.43 / PAL-B, D, G, H, I, N, M, CombinationN, 60 /SECAM

• VBI (Closed Caption / CGMS / WSS) data extraction

• Clamp pulse output

Embedded CPU

• Arm Cortex®-A9 (660MHz)

• Cache L1: 32KB Instruction 32KB Data L2: 128KB

• Boot Serial flash / eMMC / EEPROM(I2C Ch4) selectable

• Work RAM 128KB

• 8-bit parallel / 4-wire serial when external CPU is in use

CPU peripherals

• Ethernet(10/100/1000Mbps), USB2.0 (Host/Device 2ch), SD Card, eMMC

• JPEG Codec

• DMA (8ch) / UART (5ch) / I2C (4ch) / Timer (4ch) / IR remote control (3ch) / 10bit ADC (8ch, MUX) / 10bit DAC ( 3ch)

External Interface

• External interrupt (4ch)

• Serial flash interface

Motion Adaptive De-interlacer

• YUV4:2:2

• All major cadences supported

• Motion adaptive filter based on Y,U,V

Scaler

• Zoom/shrink 6-symbol programable FIR filter(10bit / pixel)

• Embedded coefficient ROM(64set)

Distortion Correction

• RGB independent distortion correction

• Coordinate correction look up table

• Embedded warp table generator
  (keystone correction and pin cushion correction)

• Load from external CPU or external serial flash

• Up to 45 degrees (horizontal / vertical)

Noise Reduction

• 3DNR(H,V,Temporal)

• MPEG-NR(Mosquito, Block)

• Chroma error filter

Image Correction

• Edge-blending
  ( RGB independent gamma correction, white peaking supported )

• Mirror / flip image, 90 degree rotation

• Overlay, Alpha blending, Color key blending

Image Quality Control

• 3DLUT

• Static HDR (PQ, HLG), Dynamic HDR (SMTPE2094-10,40)

• H/V edge enhancement (9 symbols)

• 16-bit color gamma correction tables (7 LUT available)

• Error diffusion, brightness and contrast adjustment

Bitmap OSD

• 256 colors/High color OSD(64K colors)

• Embedded font engine(65536 words)

• Blinking and semi-transparent(4 colors OSD)

• 90-degree rotation, OSD scroll

• Bitmap transfer from external serial flash

Power Supply

• 3.3V/2.5V/1.5V/1.2V/1.1V

Package

• 840-pin BGA(0.8mm pitch), 31mmx31mm





IP00C814 demo movie

The following demo movies are available.

If you would like to watch them, please contact info@i-chips.co.jp

Image transition demo movie

This is a demo video that realizes the image transition function using the image blending algorithm.

Applicable products:
IP00C733A / IP00C734A / IP00C755 / IP00C821 / IP00C331 / IP00C814

Image stabilizer demo movie

This is a demo video that realizes the camera shake correction (image stabilizer) function using a warping device.

Applicable products:
IP00C787 / IP00C788 / IP00C789 / IP00C381 / IP00C341 / IP00C382 / IP00C814

New Warping API Demonstration

This new warping API supports HV-Keystone,Pincushion, and Center shift cascade features.

Applicable products: IP00C814 / IP00C382 / IP00C381 / IP00C788 / IP00C789
