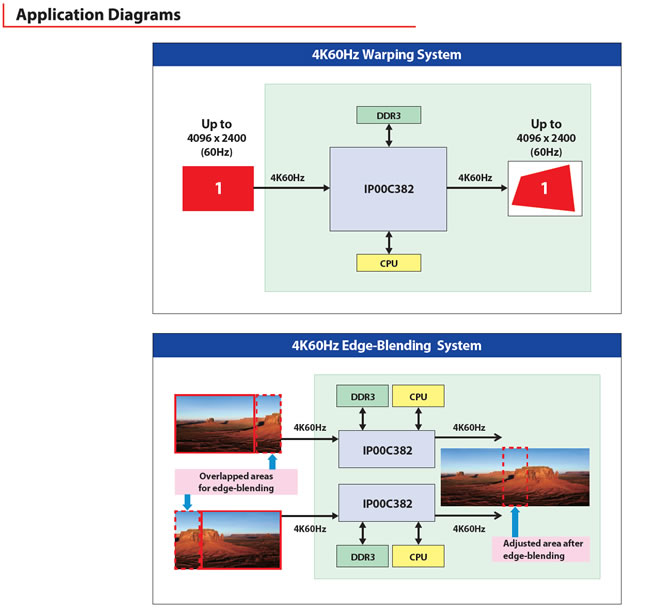

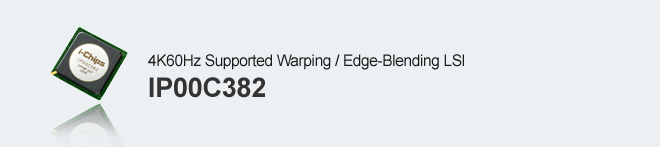

The IP00C382 is a warping and edge-blending solution with a maximum 666Mpixel/sec signal processing capability.

It supports 4K (up to 4096x2400) 60Hz input/output and additional format such as WQXGA (2560x1600) 120Hz.

It features an embedded warp table generator that implements real-time image processing for formulated distortion correction such as H and V keystone correction and pin-cushion correction without impaction an external CPU.

Edge-blending supports white peaking and results in higher performance image quality and products.

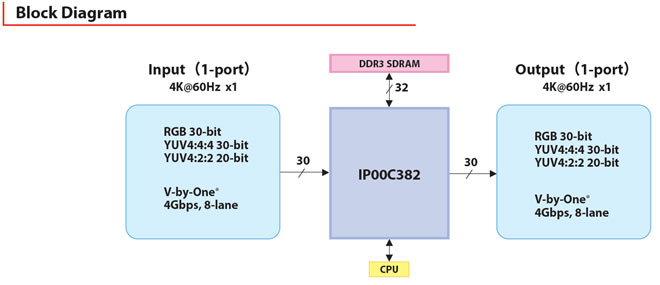

Input

• 30-bit RGB / 30-bit YUV4:4:4 / 20-bit YUV4:2:2
  @V-by-One®HS 4Gbps, 8 lane 1-port

Output

• 30-bit RGB / 30-bit YUV4:4:4 / 20-bit YUV4:2:2
  @V-by-One®HS 4Gbps, 8-lane 1-port

Imput & Output Image Size

• Horizontal sync signal 16,384 pixels(max)

• Horizontal image active area 4,096 pixels(max)

External Memory

• DDR3-SDRAM　32bit PC1600 (4G/2G/1G x16) x2

External/Internal Sync

• Output sync signal is available only with internal sync signal

Input/Output Sync/Asynchronous Behavior

• Frame rate conversion with frame tear protection.

• External force synchronization

• Genlock

Distortion Correction Mode

• RGB common distortion correction mode

Distortion Correction Method

• Coordinate correction look up table

• Embedded warp table generator (keystone correction and pin cushion correction)

• Load from external CPU or external serial flash

Distortion Correction Amount

• Up to 45 degrees(horizontal/vertical)

• Vertical shrink ratio is about x0.6 to 0.7(about 50% of IP00C381)

Image Correction

• Edge-blending(RGB independent gamma correction, white peaking supported)

• Uniformity correction

• Mirror/flip image

Image Quality Control

• 16-bit color gamma correction tables(7LUT available)

• Error diffusion, brightness and contrast adjustment

Bit Map OSD

• 256 colors/High color OSD(64K colors)

• Embedded font engine(65536 words)

• Blinking and semi-transparent(4 colors OSD)

• 90-degree rotation, OSD scroll

• Bitmap transfer from external serial flash

CPU Interface

• 4-wire serial

Serial Flash Interface

• 2G-bit x 1(max)

Power Supply

• 3.3V/1.5V/1.1V

Package

• 388-pin Plastic BGA(0.8mm pitch), 19mmx19mm





IP00C382 demo movie

The following demo movies are available.

If you would like to watch them, please contact info@i-chips.co.jp

Image stabilizer demo movie

This is a demo video that realizes the camera shake correction (image stabilizer) function using a warping device.

Applicable products:
IP00C787 / IP00C788 / IP00C789 / IP00C381 / IP00C341 / IP00C382 / IP00C814

New Warping API Demonstration

This new warping API supports HV-Keystone,Pincushion, and Center shift cascade features.

Applicable products: IP00C814 / IP00C382 / IP00C381 / IP00C788 / IP00C789
