The IP00C733A has 4 independent image processing channels with 4 input ports and 4 output ports at 166 MHz each.

The IP00C733A can drive a Full-HD/WUXGA format with a single output or a UHDTV/WQXGA format or 4K60Hz with multiple outputs.

The IP00C733A also features i-Chips’s latest technology for picture quality control such as extended-range gamma correction and color uniformity correction, in order to meet the requirements for higher image quality.

The IP00C733A is an ideal solution for applications such as video wall, multi-viewers, converters and digital signage, thanks to its advanced and versatile overlay function that supports any combination of its 4 input channels with PiP/PoP, mirror/flip/90-degree rotation.

Dot by dot uniformity correction required for an OLED/LED display is also implemented in this device.

Input/Output(4-port)

• 30-bit RGB/YUV4:4:4, 20-bit YUV4:2:2@166MHz LVCMOS

• Dual (EVEN/ODD) Input/Output, DDR Input

Input & Output Image size(Max)

• Horizontal sync signal 16,384 pixels

• Horizontal image active area 2,176 pixels

External Memory

• DDR2-SDRAM 64bit PC667(512Mbitx16)x4

External／Internal Sync

• Output sync signal corresponds to External/Internal Sync

• 4-ch Independent sync mode is available to select.

Input/Output Sync／Asynchronous Behavior

• Frame rate conversion/Tearing portection

• External force synchronization

Scaler

• Zoom/Shrink 6 symbol FIR filter(10bit/pixel)

• Coefficient ROM (64sets)

• Independent vertical/horizontal magnification & panoramic view

• Horizontal zoom/shrink & Vertical zoon/shrink cannot operate at the same time

• 4-ch input image at zoom available add overlap

Image Manipulation

• Mirror/flip

• 90-degree rotation

• 4-ch overlay, Alpha blending, Chroma key blending

Image Quality Control

• 3×3 color conversion matrix

• Uniformity correction (by region & per pixel)

• Bias/Gamma correction

Bitmap OSD

• 256colors

• Embedded font engine(65536 words)

• Blinking & Semi-transparent (4-colors OSD)

• Independent for each 4-ch output port

• Bitmap transfer from Serial flash

CPU Interface

• 8-bit parallel/4-wire serial

Power Supply

• 3.3V/1.8V/1.2V

Package

• 544-pin BGA(1.0mm pitch), 27mmx27mm

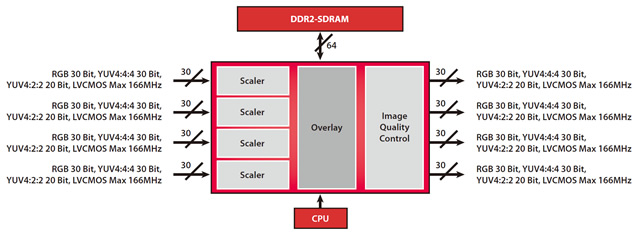

IP00C733A Block Diagram

IP00C733A demo movie

The following demo movies are available.

If you would like to watch them, please contact info@i-chips.co.jp

Image transition demo movie

This is a demo video that realizes the image transition function using the image blending algorithm.

Applicable products:
IP00C733A / IP00C734A / IP00C755 / IP00C821 / IP00C331 / IP00C814

Chromakey Demo
