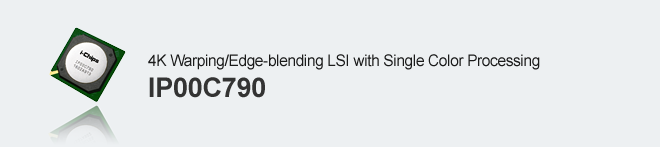

The IP00C790 is the industries first, exclusive LSI for 4K warping and edge blending.
It can handle a native 4K image up to 4096 x 2160, 60fps.
This chip is capable of single color processing of either: R, G or B. A full color 4K implementation requires three C790 chips.
However, the 4K implementation based on the C790 is easier to design.
This is because of the embedded frame memory and direct connection, through a proprietary interface, between the C790 and the C734 a front-end scaler.
Also, the C790 features image quality control and correction such as per pixel edge-blending and uniformity correction etc., that is required to achieve higher image quality.
Input(1-port)
-
10-bit R or G or B single color@100MHz x2 proprietary LVDS
40-bit(10-bit x4)R or G or B single color@150MHz LV-CMOS
Output(1-port)
-
10-bit R or G or B single color@100MHz x2 proprietary LVDS
Image Size
-
Max image active area 4096 x 2160
External/Internal Sync
-
Output sync signal is compatible with internal/external signal
Interpolation Filter
-
Horizontal/vertical 6-symbol programmable FIR filter
Distortion Correction Method
Coordinate correction look up table
Load from external CPU or external serial flash memory
Distortion Correction Amount
Up to 45 degrees(horizontal/vertical)
Any angle rotation(up to 45 degree rotation + 90 degree rotation)
Vertical shrink ratio is about x 0.3
Image Correction
Edge-blending(per pixel correction available)
Uniformity correction
Mirror/flip image
90 degree rotation
Image Quality Control
16-bit color gamma correction tables(7LUT available)
Error diffusion
CPU Interface
8-bit parallel/4-wire serial
External Memory
DDR2-SDRAM 1Gbit embedded. No extrenal memory
Serial Flash Interface
2G-bit x1(max)
Power Supply
3.3V/1.8V/1.2V
Package
496-pin BGA(1.0mm pitch), 27mmx27mm
