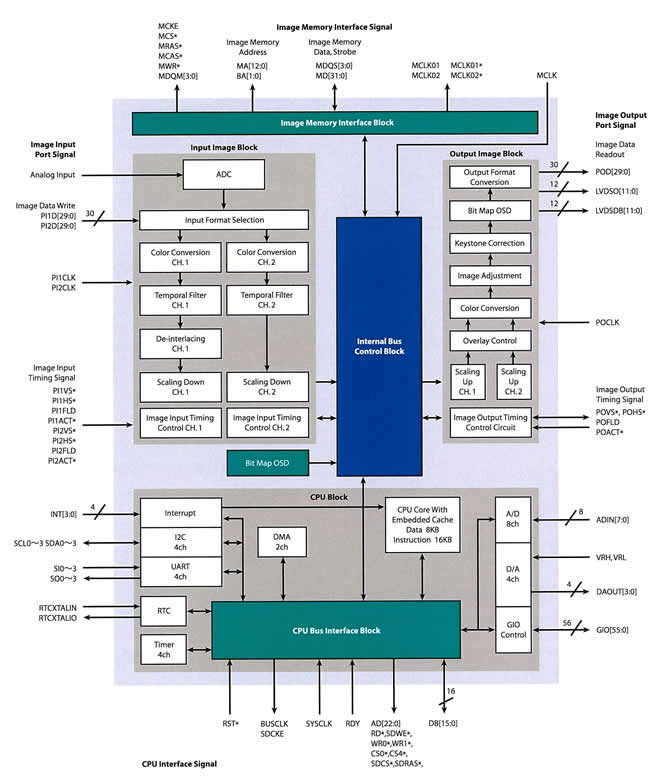

The IPOOC811 is a dual-input channel de-interlacer/scaler with built-in video decoder, ADC, CPU and LVDS Tx.

It supports PiP, PoP with inputs and output up to 1080p/WUXGA/2K1K progressive or 1080i.

The IPOOC811 features MPEG noise reduction, edge enhancement, xvYCC deep color processing, high color bitmap OSD, 90-degree image rotation, mirror image, keystone correction, and edge blending.

IPOOC811 is ideally suited for video walls applications.

Input(2 Ports)

• 30-bit RGB/YUV 4:4:4@166MHz

• 20-bit/10 bit YUV 4:2:2@166MHz

Embedded Analog Front-End

• Video decoder for NTSC/PAL/SECAM

• Supports Composite (CVBS) and S-Video inputs

• 10-bit ADC

• Adaptive Comb filter for Y/C separation

• VBI Data extraction (CC, CGMS, WSS)

• Closed-caption decoding

Output

• 30-bit RGB/30-bit YUV 4:4:4/20-bit YUV 4:2:2@166MHz

• FPD link/LVCMOS output compatible

• Up to 4096 pixels/line with 2176 pixels of active video

De-Interlacing

• Motion adaptive de-interlacer (only for channel 1 input)

• Diagonal line interpolation

• 3D/MPEG/mosquito/block noise reduction

• 2:2, 2:3 and multi cadence detection

• Comb filter for close caption

• Chroma bug canceller

Scaling

• 8x6 interpolation with FIR Filter

• Independent H and V scaling ratios (aspect ratio correction)

• Filter coefficients in embedded (64ROM set)

PiP & PoP Functions

• Two(2) fully independent video inputs

• Frame rate conversion with frame tear protection

• α blending

Bitmap OSD

• 256 colors/High color OSD (RGB565)

• Embedded font engine

• Support for blinking and semi-transparent(4color)OSD

• OSD scaling

Input Image Characteristics Identification

• (APL, Histogram, Min/Max, Edge intensity, position measurement)

Image Size

• Ch1: Up to 4096/line with 2176 active video pixels

• Ch2: Up to 4096/line with 1600 active video pixels (after shrink)

Image Processing

• Mirror image

• 90 degree image rotation (image and OSD)

• Edge blending

• Vertical keystone correction

Embedded CPU

• ARM946E-S core with 16KB instruction, 8KB data

• Work RAM of 64KB

• DMAC (2ch)/UART (4ch)/12C (4ch)

• Timer (4ch)/Clock control/interruption control/General port control /IR remote control/RTC

• 8-bit ADC (8ch)/8-bit DAC (4ch)

External CPU Interface

• 8 bit parallel or 4 bit serial interface to external Flash/SRAM/SDRAM

• Address: 23-bit/Data: 16-bit

• 4 external interrupt lines

Image Quality Control

• Horizontal and vertical edge enhancement circuits

• 12-bit color gamma correction tables (7 LUT's available)

• Brightness & luminance in RGB or YUV, contrast adjustment

• H and V edge enhancement function (9 symbols)

• Bias x3, Gain x2, CSC equipped for RGB <-> YUV

• Color management function

• Dithering for 10 or 8 bit output

• Fully compatible with xvYCC

External Memory

• DDR2-SDRAM PC800 (512/256 Mbit x16) x2

Power Supply

• 3.3V, 1.8V and 1.2V

Package

• 900-pin Plastic BGA (1mm pitch)
